Standard Transformer Enclosures

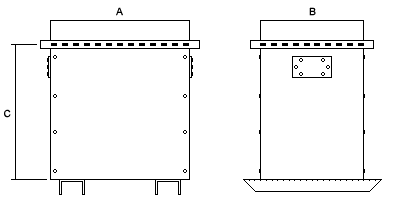

'T' Range Transformer Enclosures (IP20 Rated)

'T' Range Transformer Enclosures (IP20 Rated)
Reference Internal Dimensions (mm)
Width (A) Depth (B) Height (C)
T1 300 150 300
T2 400 200 400
T3 500 350 500
T4 600 400 600
T5 740 485 760
T6 800 600 700
T7 1000 700 800
T8 1100 800 900
T9 1250 800 1250
T10 700 500 600
T11 800 400 800
T12 900 600 800
T13 1200 700 1100

Notes:

  1. It is not advised to lift the case by the way of eye bolts in the lid.
  2. Lifting points are provided in the skid base or alternatively forks can be used through the skids.
  3. Installation and adjustment should be carried out by qualified personnel; no responsibility can be accepted for misuse or for consequential damage.
    Owing to continuous development, design many be altered without notice, size and weights are approximate. Douglas cannot be held liable for any errors which may contained in this catalogue or list. Please verify physical and electrical properties before tooling up.
