Standard Transformer Enclosures

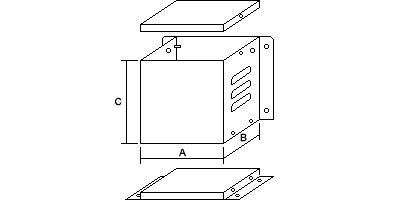

'P' Range Transformer Enclosures (IP22 Rated)
| Reference | Internal Dimensions (mm) | ||
|---|---|---|---|
| Width (A) | Depth (B) | Height (C) | |
| P0 | 130 | 115 | 127 |
| P1 | 130 | 115 | 190 |
| P2 | 154 | 154 | 220 |
| P3 | 193 | 177 | 242 |
| P4 | 258 | 215 | 268 |
| P5 | 282 | 242 | 350 |
| P6 | 305 | 305 | 450 |
| P7 | 365 | 335 | 475 |

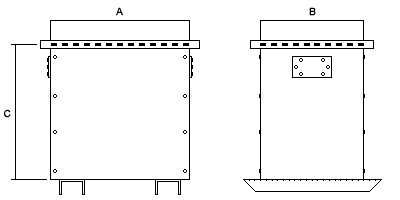

'T' Range Transformer Enclosures (IP20 Rated)
| Reference | Internal Dimensions (mm) | ||
|---|---|---|---|
| Width (A) | Depth (B) | Height (C) | |
| T1 | 300 | 150 | 300 |
| T2 | 400 | 200 | 400 |
| T3 | 500 | 350 | 500 |
| T4 | 600 | 400 | 600 |
| T5 | 740 | 485 | 760 |
| T6 | 800 | 600 | 700 |
| T7 | 1000 | 700 | 800 |
| T8 | 1100 | 800 | 900 |
| T9 | 1250 | 800 | 1250 |
| T10 | 700 | 500 | 600 |
| T11 | 800 | 400 | 800 |
| T12 | 900 | 600 | 800 |
| T13 | 1200 | 700 | 1100 |
Notes:
- It is not advised to lift the case by the way of eye bolts in the lid.
- Lifting points are provided in the skid base or alternatively forks can be used through the skids.
- Installation and adjustment should be carried out by qualified personnel; no responsibility can be accepted for misuse or for consequential damage.
Owing to continuous development, design many be altered without notice, size and weights are approximate. Douglas cannot be held liable for any errors which may contained in this catalogue or list. Please verify physical and electrical properties before tooling up.
