Low Voltage U Clamp Transformers

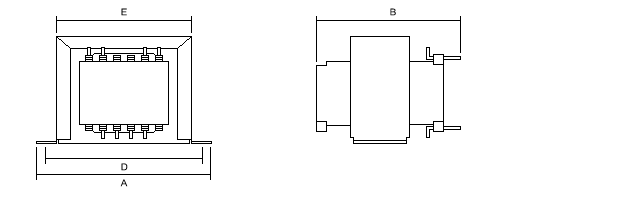

Dimensions, Weight & Regulations
| Rating | Reg % | Dimensions (inches) | Dimensions (mm) | Weight | Fixing | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | B | E | A | C | D | B | E | lb | kg | BA | MM | ||
| 6VA | 18 | 2.62 | 1.43 | 2.12 | 1.50 | 1.75 | 67 | 37 | 54 | 40 | 45 | 0.45 | 0.20 | 4 | 4 |
| 12VA | 10 | 3.37 | 2.00 | 2.75 | 2.00 | 2.37 | 86 | 50 | 71 | 50 | 60 | 1.00 | 0.45 | 2 | 4 |
| 25VA | 10 | 3.81 | 2.25 | 3.31 | 2.18 | 2.75 | 97 | 58 | 84 | 55 | 70 | 1.55 | 0.70 | 2 | 4 |
| 50VA | 10 | 4.12 | 2.56 | 3.62 | 2.43 | 3.12 | 105 | 65 | 92 | 62 | 80 | 2.20 | 1.00 | 2 | 4 |
| 75VA | 8 | 4.12 | 2.56 | 3.62 | 2.62 | 3.12 | 105 | 65 | 92 | 68 | 80 | 2.65 | 1.20 | 2 | 4 |
